As AI server racks scale well beyond traditional 48V architectures to meet massive power demands, managing high-voltage power paths is getting exponentially more complex. Infineon’s new XDP8HD40S-1 is a high-voltage hot-swap controller built specifically to tackle this, targeting next-gen AI power systems running at ±400 VDC and 800 VDC.
When you’re building infrastructure where GPUs, power modules, and converters need to be hot-swapped without bringing down the entire rack, this hot-swap controller ensures components connect and disconnect safely without compromising system integrity.
It’s highly versatile and designed to drop into a variety of high-voltage applications, including:
- Two-wire 800 V or ±400 V intermediate bus converters and GPUs
- 1,500 V intermediate bus converter systems
- High-voltage rack and server power delivery
- Battery backup and peak shaving systems
- 400 V to 800 V single- or dual-side hot-swap implementations
Because it’s an Infineon part, it pairs seamlessly with their OptiMOS MOSFETs and CoolSiC JFETs.
This allows you to build rugged, highly efficient protection stages using the exact same silicon and SiC tech already proven in existing 800 VDC AI data center reference designs.
Protection and Control
Controlling inrush currents and surviving transient spikes at 800V is notoriously tricky. To handle this, the XDP8HD40S-1 uses digital Safe Operating Area (SOA) control alongside programmable active protections.
A variable pulse SOA control mode (Boost Mode) optimizes the startup sequence while keeping the power switch strictly within its safe limits.
It also includes an integrated gate driver optimized for external SiC cascode setups (a MOSFET/JFET combination), giving you highly efficient control over high-voltage stages.
If things go wrong, the controller relies on heavy surge immunity and a fast shutdown feature, driven by a configurable 1.5 A pull-down to instantly protect your compute infrastructure from abnormal conditions.
Telemetry and Management
Operating across a wide voltage range (VDDB from 4.5 V to 24 V and VDDA from 4.5 V to 13.2 V), the controller is built for modern data center management. Real-time visibility is non-negotiable in AI platforms, and the XDP8HD40S-1 delivers on that front:
- Precision Monitoring: 12-bit ADCs deliver ~1% accuracy for voltage and current, and 3% for power, with analog monitoring reporting at 1.5% accuracy.
- Secure Comms: A PMBus 1.5 interface includes enhanced security features to integrate safely into your broader management infrastructure.
- Black-Box Recording: If a fault triggers, the chip captures critical event data, heavily accelerating root-cause analysis and system debugging.
- Custom Protections: Input/output overvoltage, undervoltage, and external overtemperature protections are all fully programmable.
Between its accurate energy metering and rapid fault response, the XDP8HD40S-1 goes beyond basic protection. It provides the exact telemetry needed for predictive maintenance and system optimization as AI power densities continue to surge.
Leadership Comment
“Future AI data centers require power delivery systems that combine high efficiency, maximum reliability, and comprehensive protection capabilities,” said Magdalene Boebel, Senior Vice President and Business Line Head of Power System ICs at Infineon. “The XDP8HD40S-1 enables system designers to implement reliable hot-swap solutions for ±400 V and 800 V power architectures while providing the monitoring and protection features needed to maximize server uptime and operational efficiency.”
Availability

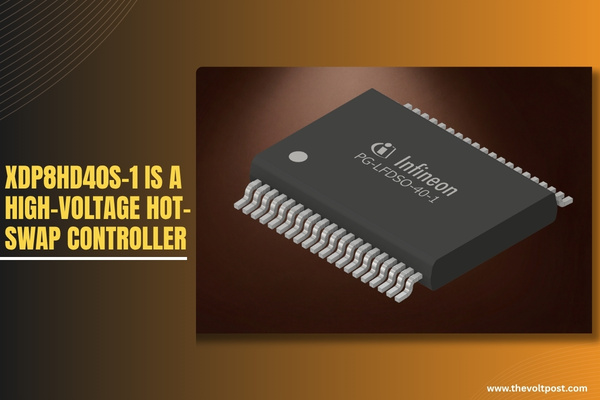

The XDP8HD40S-1 is offered in an LFDSO-40 package measuring 10.7 mm × 10.3 mm. Samples are targeted for availability in the second quarter of 2027.
