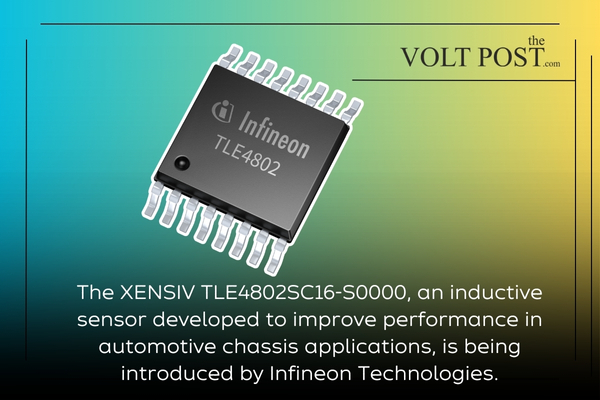

The XENSIV TLE4802SC16-S0000, an inductive sensor developed to improve performance in automotive chassis applications, is being introduced by Infineon Technologies. The sensor supports digital output via SENT or SPC protocols and allows for high-precision torque and angle measurements with robust stray field robustness.
Without the need for further shielding, it provides extremely accurate detection. The sensor is flexible and reliable, and it is specifically designed for use in electric power steering systems, including torque and steering angle sensors, as well as pedal and suspension applications.
The XENSIV TLE4802SC16-S0000 Inductive Sensor Combines:
- A coil system driver, signal conditioning circuits, and a digital signal processor (DSP) in a single package.
- The sensor includes overvoltage and reverse polarity protection and comes in a RoHS-compliant and halogen-free surface-mounted TSSOP-16 package.
- It is qualified to AECQ100, Grade 0, for operation across a wide temperature range from -40°C to 150°C.
- Furthermore, the sensor is fully compliant with ISO 26262, making it ideal for safety-critical systems.
- A built-in cybersecurity function protects the system communications against man-in-the-middle attacks.
- The TLE4802SC16-S0000 is the first in a new family of inductive sensors, with further variants planned for release.
Availability
The TLE4802SC16-S0000 is available now and can be ordered in sample quantities or for volume production.
