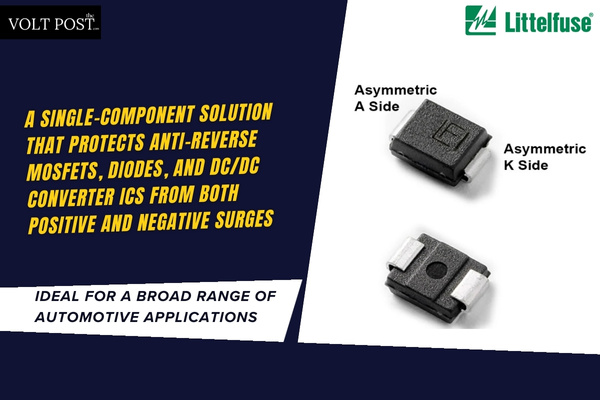

The TPSMB Asymmetrical Series TVS Diodes (TPSMB2412, TPSMB2616, TPSMB2818, and TPSMB3018) were announced by Littelfuse. Compared with traditional symmetrical bi-directional TVS solutions, these first-to-market devices are said to perform greater performance since they have been designed for 12V battery anti-reverse protection.
Key Features and Benefits
- Asymmetrical protection with low positive clamping (24–30 V) and low negative clamping (12–18 V).
- Single device replaces multiple Zeners/TVS diodes, streamlining PCB design.
- High performance: 600 W peak pulse power, <1 ns response time, and up to 30 kV ESD dissipation.
- Automotive qualified: AEC-Q101 compliant with a wide -65°C to 175°C junction temperature range.
- Compact design: DO-214AA surface-mount package optimizes board space.
The TPSMB Asymmetrical TVS Diodes offer a single-component solution that protects anti-reverse MOSFETs, diodes, and DC/DC converter ICs from both positive and negative surges, in contrast to traditional methods that frequently call for multiple components.
Engineers can choose lesser-rated MOSFETs or diodes since the asymmetrical clamping capability guarantees substantially lower clamping voltage from negative surges. This method lowers overall BOM costs, simplifies design, and decreases conduction losses.
Applications
The TPSMB Asymmetrical Series is ideal for a broad range of automotive applications requiring 12V battery anti-reverse protection, including:
- Domain and zonal controllers
- Body control modules (BCMs)
- Infotainment and lighting systems
- ECUs and power seats
- Motor pre-tensioner safety belts
- ADAS systems
Key Comment
“The TPSMB Asymmetrical Series delivers the industry’s first single-component solution specifically engineered for 12V battery anti-reverse protection,” said Charlie Cai, Director Product Marketing at Littelfuse. “By enabling customers to use lower-voltage MOSFETs or diodes, these devices reduce conduction loss, simplify circuit design, and lower BOM cost while ensuring reliable automotive system protection.”
With the launch of the TPSMB Asymmetrical Series, Littelfuse expands its automotive protection portfolio to address the evolving requirements of 12V battery systems in modern vehicles.
Availability
The TPSMB Asymmetric TVS Diode Series is available in tape and reel format in quantities of 3,000. Sample requests are accepted through authorized Littelfuse distributors worldwide.
For a listing of Littelfuse distributors, please visit Littelfuse.com.
Additional information is available on the TPSMB Asymmetric Series product page.
