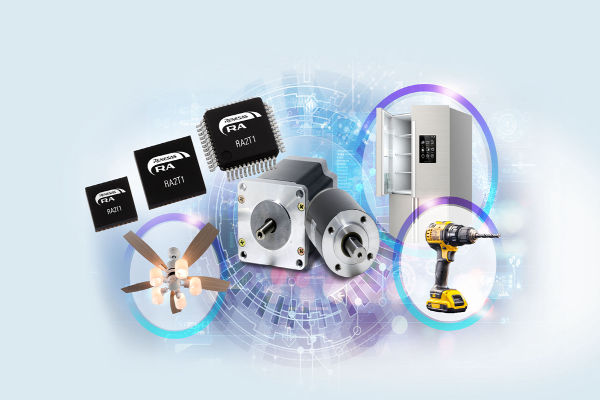

The Arm Cortex-M23 processor-based RA2T1 microcontroller (MCU) group, designed for motor control systems, was unveiled by Renesas Electronics Corporation. Fans, power tools, vacuum cleaners, freezers, printers, hair dryers, and many more single-motor devices are specifically made for RA2T1 devices.
Feature Set Optimized for Motor Control
Numerous aspects of the new RA2T1 devices are intended to improve motor control performance, particularly in single-motor systems. A 3-channel S&H function that concurrently detects the 3-phase current values of Brushless DC (BLDC) motors is one of its noteworthy features.
Comparing this method to sequential measurement methods, the control accuracy is higher. Additionally, the RA2T1 MCUs include a supplementary Pulse Width Modulation (PWM) function of the timer, allowing for the automatic development of an asymmetric PWM and the insertion of dead time. Implementing control algorithms is made easier by this function’s inverter drive optimization.
Safety aspects that are essential in motor control applications are provided by the RA2T1 devices. When an overcurrent is detected, they swiftly cut off the PWM output by utilizing a high-speed comparator and a Port Output Enable function. The inverter specs can be used to choose the shutdown state.
Renesas Leadership in Embedded Processing for Motor Control
For more than 20 years, Renesas has shipped MCUs designed specifically for motor control. Every year, the company supplies more than 230 million motor control embedded processors to thousands of clients across the globe.
Renesas provides motor-control specialized devices in its 32-bit RX Family, its 16-bit RL78 MCUs, and its 64-bit RZ MPUs, in addition to other RA MCU groups.
Key Features of the RA2T1 Group MCUs
- Core: 64 MHz Arm Cortex-M23
- Memory: 64KB Flash, 8KB SRAM, 2KB Data Flash
- Analog Peripherals: 12-bit ADC with 3-channel Sample and Hold, temperature sensor, internal reference voltage, 2-channel high-speed comparators
- System: High-, mid- and low-speed On-chip Oscillators; clock output; power-on reset; voltage detection; data transfer, event link and interrupt controllers; low-power modes
- Safety: PWM forced shutdown, SRAM parity error check, ADC self-diagnosis, clock frequency accuracy measurement, illegal memory access detection
- Operating Temperature Range: Ta = -40°C to 125°C
- Operating Voltage: 1.6V to 5.5V
- Packages: 48LQFP, 32-LQFP, 48-QFN, 32-QFN, 24-QFN (4mm x 4mm)
The new RA2T1 Group MCUs are supported by Renesas’ Flexible Software Package (FSP). The FSP enables faster application development by providing all the infrastructure software needed, including multiple RTOS, BSP, peripheral drivers, middleware, connectivity, networking, and security stacks as well as reference software to build complex AI, motor control and cloud solutions.
It allows customers to integrate their own legacy code and choice of RTOS with FSP, thus providing full flexibility in application development. Using the FSP will ease migration of motor control designs to other RA Series devices.
Winning Combinations
Renesas has combined the new RA2T1 Group MCUs with numerous compatible devices from its portfolio to offer a wide array of Winning Combinations, including Portable Power Tools, Smart BLDC Ceiling Fan, Cordless Vacuum Cleaner, Cordless Leaf Blower.
Winning Combinations are technically vetted system architectures from mutually compatible devices that work together seamlessly to bring an optimized, low-risk design for faster time to market.
Renesas offers more than 400 Winning Combinations with a wide range of products from the Renesas portfolio to enable customers to speed up the design process and bring their products to market more quickly. They can be found at renesas.com/win.
Leadership Comments
“Customers have trusted Renesas motor control solutions for many years across thousands of systems,” said Daryl Khoo, Vice President of Embedded Processing Marketing Division at Renesas. “The RA2T1 MCUs enhance our leadership in this area with market-leading technology, low-power operation, and legendary Renesas quality and safety standards for single-motor systems.”
Availability
The RA2T1 Group MCUs are available now, along with the FSP software. The new MCUs are supported in Renesas’ Flexible Motor Control development kit that enables easy evaluation of motor control using permanent magnet synchronous motors (brushless DC motors), and the Renesas Motor Workbench development tool.
This development kit offers a common design platform with numerous Renesas motor control MCUs from the RA and RX families, enabling migration of IP across numerous devices. Information on all these offerings is available at renesas.com/RA2T1. Samples and kits can be ordered either on the Renesas website or through distributors.
