For production-line applications ranging from refrigerated, cryogenic, and other carefully regulated environments to chemical and food processing, manufacturing process control, medical equipment, and HVAC systems, precise four-channel temperature measurement is essential.
The MCP9604 integrated thermocouple conditioning IC is the first single-chip, four-channel I2C thermocouple conditioning IC to deliver up to ± 1.5°C accuracy.
This overcomes a thermal measurement and integration barrier and offers an alternative to discrete and multichip thermocouple conditioning solutions, which can introduce errors and complicate system design.
The MCP9604 Integrated Thermocouple Conditioning IC Delivers:
- Advanced measurement accuracy at four thermocouple locations by using higher-order NIST ITS-90 equations rather than the single-order linear approximations of analog amplifier designs.
- As an example, it achieves ninth-order accuracy with K-type thermocouples, all in one integrated chip containing the ADCs, cold junction compensation temperature sensors, amplifiers and other components required for the signal chain, temperature measurement and math engine.
- Flexibility and versatility by supporting the eight most common thermocouple types including the J option as well as the K option for operating at temperatures as low as
-200°C.
Removing the need for external components simplifies PCB design, reduces bill of materials costs, and can help eliminate the weeks of costly, time-consuming and complex unit-by-unit in-line validation and calibration that discrete solutions require in the thermocouple measurement signal chain before they can begin reporting data to the host system.
In addition to supporting a wide, -200°C to +1372°C temperature range across a diverse range of industrial applications, the MCP9604 also supports I2C communication to allow easy integration with microcontrollers and other digital systems.
Building on Earlier Advancements
The MCP9604 builds on the release of Microchip’s single-channel thermocouple conditioning IC, the first all-in-one device to deliver up to ± 1.5°C accuracy.
The core competencies that made this device possible have paved the way for the company’s four-channel single-chip MCP9604 device that delivers its digital temperature reading with industry-high accuracy levels for an I2C thermocouple conditioning device.
Development Tools

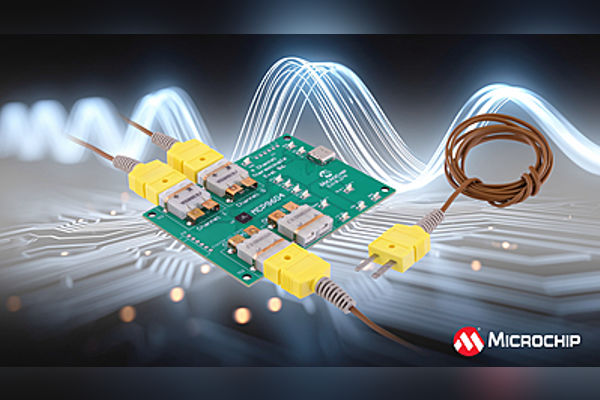

The MCP9604 device is supported by the Microchip EV19L27A evaluation board. It can connect to and read information from as many as four thermocouples and includes a microcontroller that acts as a host system for receiving this information and plotting the selected thermocouple.
The evaluation board also includes free software that can be downloaded from either the MCP9604 or EVB web pages.
Leadership Comments
“For more than two centuries, the thermocouple has been a critical tool for measuring extremely high temperatures, but the necessary precision and accuracy could not be achieved with the level of integration and cost-effectiveness that is required for today’s demanding production-line applications,” said Keith Pazul, vice president of Microchip’s mixed-signal linear business unit. “Our device now delivers a combination of precision, integration and cost-effectiveness, helping reduce the need for as many as 15 discrete components and associated system design challenges.”
Pricing and Availability
The MCP9604 thermocouple conditioning IC is available in a tape-in-reel (MCP9604T-E/3YW) or rail (MCP9604-E/3YW) configuration. Each device is available for $10.56 each in 10,000-unit quantities and packaged in a 24-pin 5×5 Land Grid Array (LGA). The price of the EV19L27A evaluation board is $96.00 each and is available now.
To Know More About MCP9604 integrated thermocouple conditioning IC, CLICK HERE
