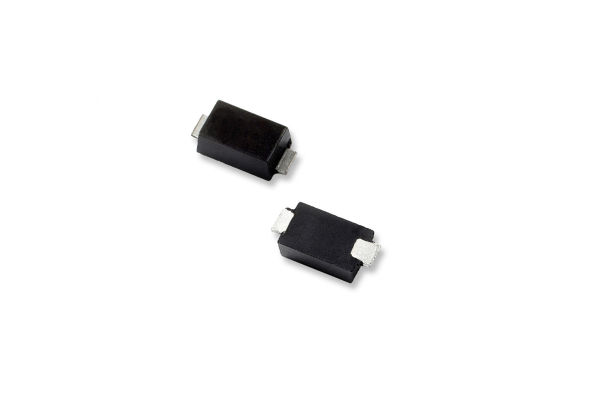

The SZSMF6L Series of unidirectional and bidirectional TVS diodes was introduced by Littelfuse. These 600 W automotive-grade devices are perfect for increasingly space-constrained automotive and electric vehicle (EV) designs because they offer strong protection against high-energy transients in a small, surface-mount SOD-123FL package.
The SZSMF6L Series, which builds on the popularity of the 400 W SZSMF4L Series, which was released in 2023, offers 50% more peak power handling while keeping the same small footprint.
Critical automotive systems susceptible to voltage spikes from switching events, load dumps, or electrostatic discharge (ESD) are protected by the improved clamping performance and surge protection.
Key Features and Benefits
- 600 W peak pulse power (10/1000 µs) in a small SOD-123FL package
- Working peak reverse voltage range: Unidirectional 5–75 V; Bidirectional 10–75 V
- Fast response time < 1 ns minimizes the threat window for transient events
- Planar chip design ensures low leakage current and consistent clamping performance
- High operating temperature up to 175 °C for harsh automotive environments
- AEC-Q101 qualified and PPAP capable, supporting automotive-grade change control
- >16 kV ESD rating (HBM Class 3) for sensitive interface and sensor protection
Applications
The SZSMF6L Series is suited for high-reliability transient protection in:
- EV Powertrain and Inverters
- Battery Management Systems (BMS)
- On Board Charging (OBC)
- Power Distribution Units (PDU)
- Body Control Modules
- Domain and Zone Controllers
- Automotive Lighting Systems
The SZSMF6L TVS diodes enable more efficient, compact, and rugged designs that meet the growing electrical demands of next-generation vehicles.
Their performance and footprint compatibility allow seamless upgrade paths from the SZSMF4L when additional power handling is required.
Leadership Comments
“The SZSMF6L Series addresses the evolving demands of EV and automotive system designers who need greater transient protection without compromising board space,” said Charlie Cai, Director Product Marketing SBU at Littelfuse. “With the transition to zonal architectures and the continued push for miniaturization, this 600 W solution offers engineers a more robust and thermally reliable alternative to the SZSMF4L for high-stress environments.”
Availability
The SZSMF6L Series SMD TVS Diodes are available in tape and reel packages of 5000. Place sample requests through authorized Littelfuse distributors worldwide.
For a listing of Littelfuse distributors, CLICK HERE
To Know More
Additional information on the latest series release is available Here
