The new EKO series fuses has been engineered to meet the rigorous demands of high-voltage DC and AC environments, offering superior protection and reliability across a range of industrial and power applications.

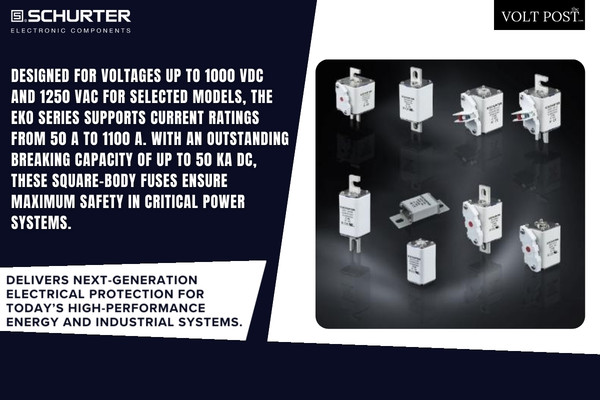

Designed for voltages up to 1000 VDC and 1250 VAC for selected models, the EKO series supports current ratings from 50 A to 1100 A. With an outstanding breaking capacity of up to 50 kA DC, these square-body fuses ensure maximum safety in critical power systems.
Built for endurance, the EKO series fuses is tested to withstand extreme operating conditions, including vibration, mechanical shock, chemical exposure, and temperatures from -40 °C to +125 °C.
Its ceramic housing and tin-plated copper alloy terminals ensure durability, consistent electrical performance, and long service life even in harsh industrial settings.
For greater design flexibility, the EKO fuses are available with multiple mounting options including Flush End, DIN-Rail, US-Style Bolted Tag, and Bolt-on configurations making system integration simple and adaptable. Optional indicators and microswitches support real-time status monitoring, helping operators maintain uptime and safety.
Thanks to their versatility and resilience, the EKO series is ideal for a wide range of applications such as EV charging infrastructure, energy storage systems (BESS), power conversion equipment (UPS, inverters, drives), manual service disconnectors, and heavy industrial machinery.
By combining high fault tolerance, compact design, and broad application compatibility, the EKO series delivers next-generation electrical protection for today’s high-performance energy and industrial systems.
Key Features:
- Rated voltage: 1000 VDC (1250 VAC available for selected series)
- Rated currents: 50 – 1100 A
- Breaking capacity: 50 kA DC (100 kA AC for selected series)
- Characteristic HV Fuse Mounting Flush End, DIN-Rail, US Style Bolted Tag, Bolt-on
The EKO series meets IEC, UL, and GB/T standards and complies with CE, RoHS, and REACH directives, ensuring global acceptance and peace of mind.
For product information, review the EKO Datasheet or contact Sales at info.sinc@schurter.com.
The EKO and other SCHURTER products are supported through, franchised distributors.
