As thermal and electrical performance become competitive differentiators in AI and 5G hardware, AOS is positioning the AONK40202 as a flagship power device. While companies like Infineon, Vishay, and ON Semiconductor have made inroads with advanced MOSFET packaging, AOS’s focus on center-gate Source-Down geometry gives it a unique edge for next-gen server design.
AOS’s AONK40202 is touted as more than just a new MOSFET—it’s a response to the evolving demands of AI hardware and hyperscale computing.
Meeting the Thermal and Power Density Challenges of AI and Data Centers, Alpha and Omega Semiconductor (AOS) has introduced the AONK40202, a 25V N-channel MOSFET engineered specifically for demanding AI infrastructure and high-density computing environments.

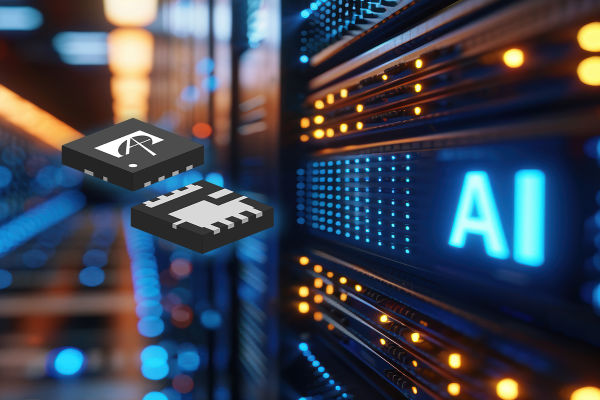

With its Source-Down DFN 3.3 × 3.3 mm center-gate package, the new power MOSFET offers industry-leading thermal efficiency, current handling, and system-level reliability for AI servers, GPUs, and data center power delivery networks.
Why It Matters: Power Demands Are Skyrocketing in AI Systems
With the proliferation of large language models, real-time inference engines, and edge-to-cloud AI computing frameworks, power density and thermal dissipation have become critical bottlenecks. Traditional Drain-Down MOSFETs often fail to deliver optimal heat transfer in space-constrained environments.
AOS’s new Source-Down architecture directly addresses this challenge by enhancing heat flow through the PCB, enabling systems to operate cooler at higher current loads.
Technical Highlights of AONK40202
| Specification | Value |
|---|---|
| Drain-to-Source Voltage | 25?V |
| Continuous Drain Current | Up to 319?A (at 175°C) |
| Gate-Source Voltage | ±12?V |
| On-Resistance (R<sub>DS(on)</sub>) | 0.7?m? at V<sub>GS</sub> = 10?V |
| Max Junction Temperature | 175?°C |
| Package Type | DFN 3.3 × 3.3 mm (Source-Down, Center-Gate) |
The center-gate layout ensures better symmetry and optimal routing for gate drivers, reducing signal distortion and enhancing switching efficiency in synchronous buck converters and multiphase power rails used in AI motherboards.
Leader’s Insight: AOS Targets AI and Hyperscale Demand
“With the rise of transformer-based AI models and rapid deployment of GPU-rich data centers, the demand for power components that can withstand extreme thermal and current conditions is urgent,” said Peter H. Wilson, Senior Director of MOSFET Product Line at AOS. “The AONK40202 offers a reduction in power losses and better thermal performance compared to traditional Drain-Down packaging solutions. This new MOSFET is specifically designed to meet the increasing power density demands of AI servers and hyperscale infrastructure.”
Application Focus: Designed for AI Servers, GPUs, and Enterprise Platforms
The AONK40202 is ideally suited for:
-
High-end AI server motherboards
-
Multiphase VRMs powering GPUs/CPUs
-
Power conversion stages in hyperscale and edge data centers
-
5G infrastructure and cloud-native AI compute clusters
Its thermal efficiency and high-current capability allow OEMs and ODMs to reduce the number of MOSFETs per phase, leading to smaller board footprints, lower BOM costs, and higher system reliability.
Design Advantages: Source-Down = Cooler, Faster, Smaller
Compared to conventional Drain-Down designs, the Source-Down architecture allows the source to be soldered directly to the PCB, facilitating superior heat transfer. This results in:
- Lower thermal resistance
- Higher current throughput
- Simplified heat-sink design
- Compact, symmetrical PCB layouts
These enhancements are especially crucial for power stages in GPUs and AI accelerators operating under sustained, high-load conditions.
Competitive Landscape: AOS Sets the Bar Higher
As thermal and electrical performance become competitive differentiators in AI and 5G hardware, AOS is positioning the AONK40202 as a flagship power device. While companies like Infineon, Vishay, and ON Semiconductor have made inroads with advanced MOSFET packaging, AOS’s focus on center-gate Source-Down geometry gives it a unique edge for next-gen server design.
Availability and Market Impact
The AONK40202 is already in mass production, with global availability through AOS’s authorized distributors. Volume pricing starts at approximately $1.65 per unit for quantities over 1,000 units, and lead times range between 14–16 weeks depending on region and volume.
With increasing adoption of AI workloads by hyperscalers like Microsoft Azure, Google Cloud, and AWS, demand for power-efficient silicon is poised to grow exponentially. The AONK40202 is expected to be widely adopted in upcoming power stages of NVIDIA H200, AMD MI400-series, and Intel Gaudi-powered servers.
Meeting Demands of AI Hardware and Hyperscale Computing
AOS’s AONK40202 is touted as more than just a new MOSFET—it’s a response to the evolving demands of AI hardware and hyperscale computing. As edge and cloud-based AI deployments scale, innovations like Source-Down packaging will be instrumental in building power-dense, thermally stable, and energy-efficient systems.
